Mould Tool Design And Manufacture

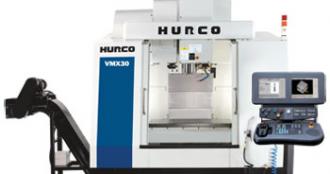

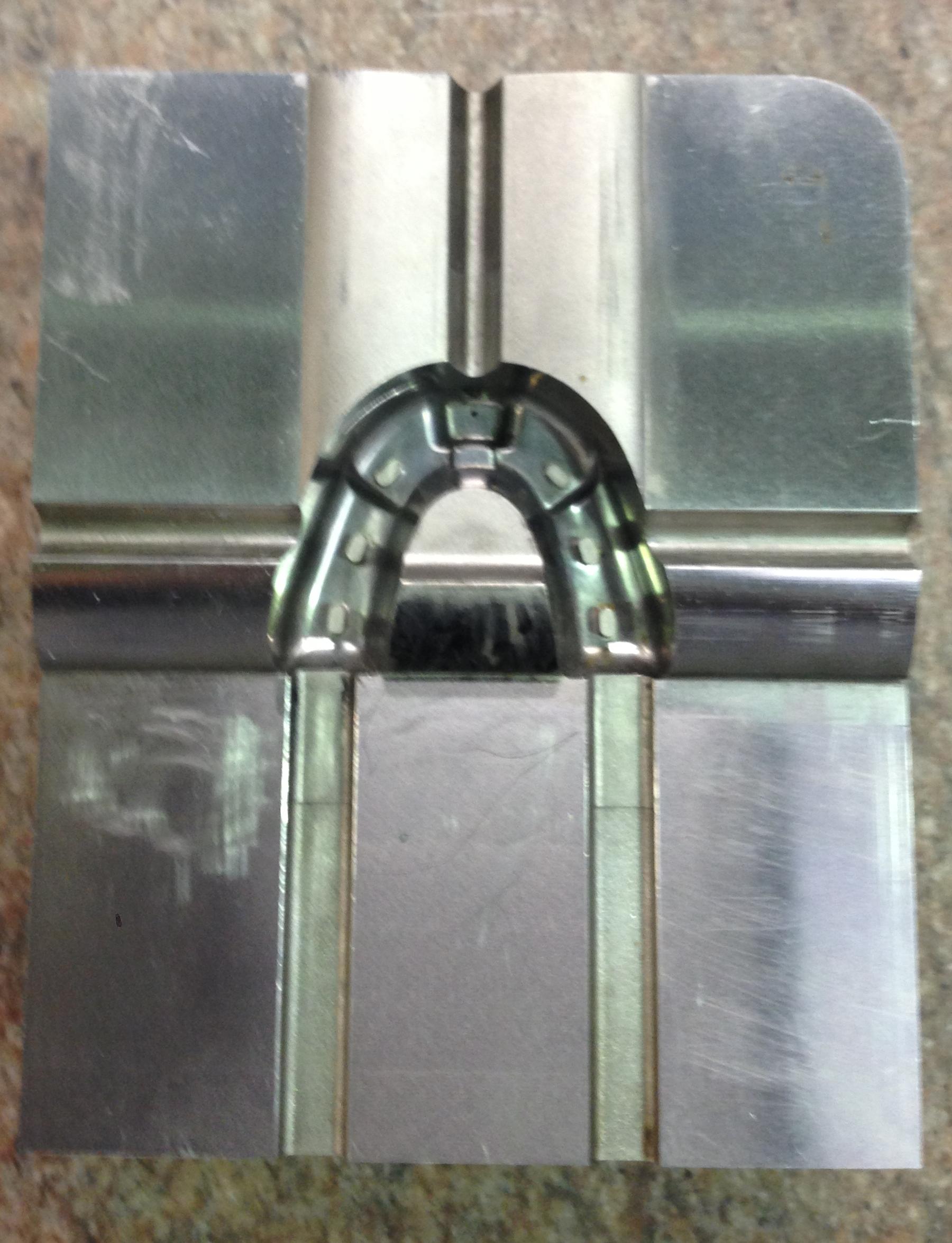

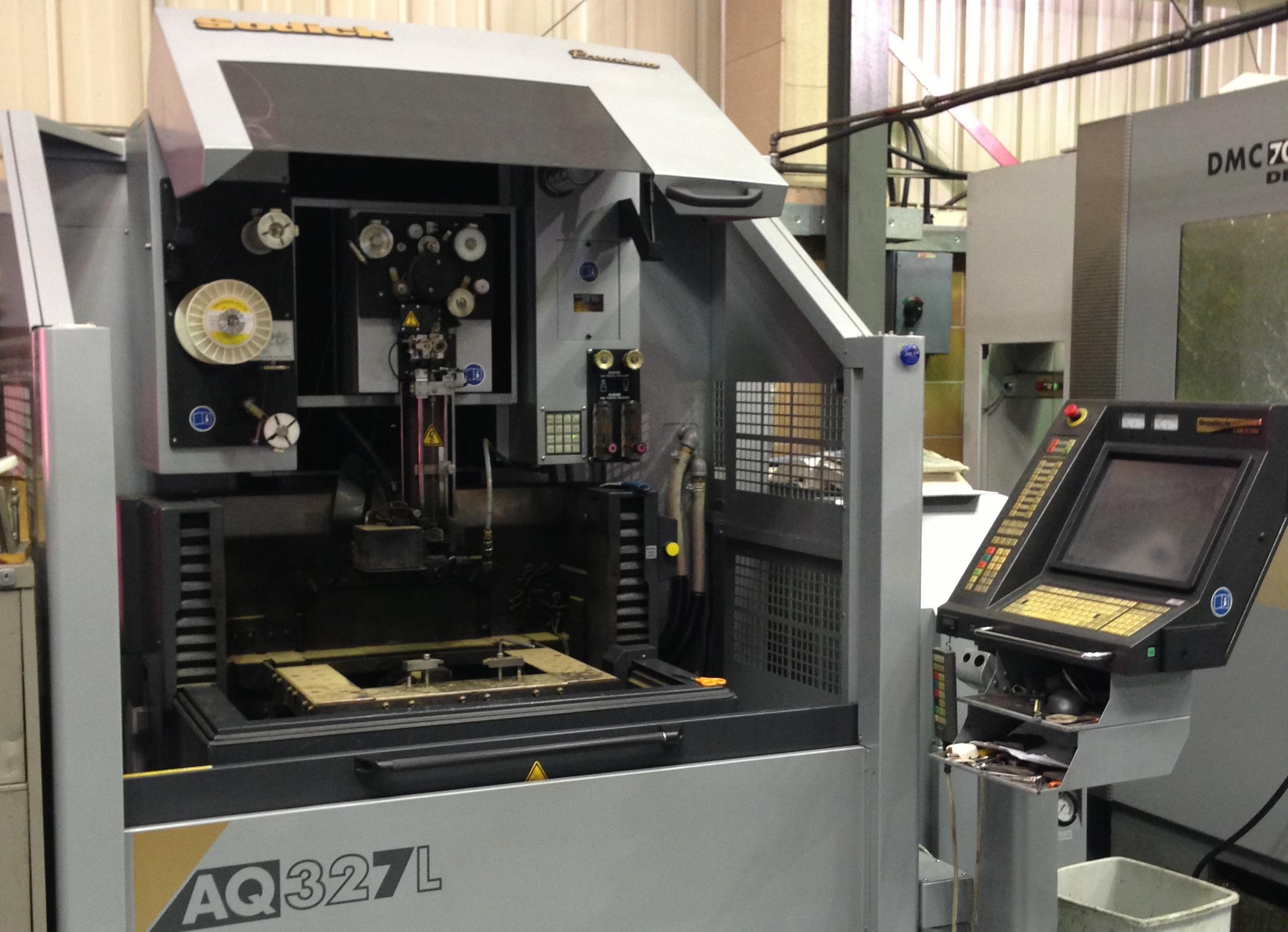

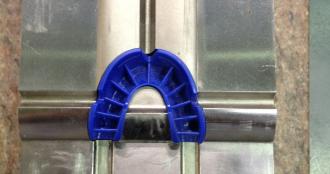

We team our experienced toolmakers with the very best technology capable to produce the very best in new tooling and design. CNC wire erosion, Spark erosion, and high speed milling provide the tools to accurately produce finished components. Customer satisfaction will be met at all times in the build up to design and manufacture, with all tools manufactured from quality steel and bolsters. Euromould can produce single shot and multi shot tooling, with feeds varying from cold sprue to hot tip systems that a customer may specify. Two Shot Specialists Capable to trial and produce any of the tools we manufacture is a great way to support all tooling for very best maintenance and support. Two shot tooling offers a customer a cost effective solution for what may normally be two separate mould tools over moulded together. Meaning quicker cycle time, and cost effective moulding and better consistency of component. Euromould has produced two shot tooling for varying industries from Medical to Automotive. PLANT LIST • SODICK WIRE EDM ALC400G 1 • SODICK SPARK EDM AG60L 1 • SODICK SPARK EDM AL40G 1 • SODICK SPARK EDM TX21 MOLDMAKER3 1 • SODICK SPARK EDM AQ55L 3 AXIS LINEAR 1 • SODICK SPARK EDM AQ35L 3 AXIS LINEAR 1 • SODICK PREMIUM WIRE EDM AQ327L 1 • SODICK K1C WIRE START HOLE DRILLING MACHINE 1 CNC MILLS • HURCO ULTIMAX CNC MILLING MACHINE 1 • Roders RXP 500DS 5 Axis MILLING MACHINE 1 & RCE robotic handling system Roders RXP 500DSC 5 Axis MILLING MACHINE 1 • HURCO VMX 24 TI MILLING MACHINE 1 •Roders 501 3axis Milling MACHINE 1 & RCS2 Robotic handling system MANUAL CUTTING/ MILLING MACHINES • XYZ MACHINE TOOLS SM 1500 1 • PRO SAW UE250 1 • COLCHESTER STUDENT 1800 LATHE 1 • XYZ PROTURN SLX355 CNC LATHE • HARRISON M250 LATHE GRINDING MACHINES • MYFORD CYLINDRICAL GRINDING MACHINE 1 • JONES AND SHIPMAN 540X 1 • JONES AND SHIPMAN 540 1 • JONES AND SHIPMAN 540AP 1 • JONES AND SHIPMAN 540P 1 • JONES AND SHIPMAN 540L 1 • JONES AND SHIPMAN 1400 LAR 1 • JONES AND SHIPMAN CYLINDRICAL GRINDING MACHINE 1300 WITH DRO • JONES AND SHIPMAN 1400X OTHER EQUIPMENT • MARKEM 596 PAD PRINTER 2 • VENTUS VACUBLAST SANDBLASTING 1 • 2000KG CRANE BRAMLEY ENGINEERING 1 • TOYOTA FORKLIFT 1 • 1000KG MERCIA LIFTING CRANE 3 • ULTRASONIC CLEANER 3 OFF • NAKANISHI ULTRASONIC POLISHING MACHINE • HPC COMPRESSOR 3 OFF Inspection Equipment • Brown and Sharpe CMM • Bowers Air Bore Gauge • MITUTOYO MF SERIES MICROSCOPE • Zeiss DuraMax - Electrode Preset SOFTWARE PROGRAMS
Injection Moulding
Moulding on site at Euromould is predominantly single shot.

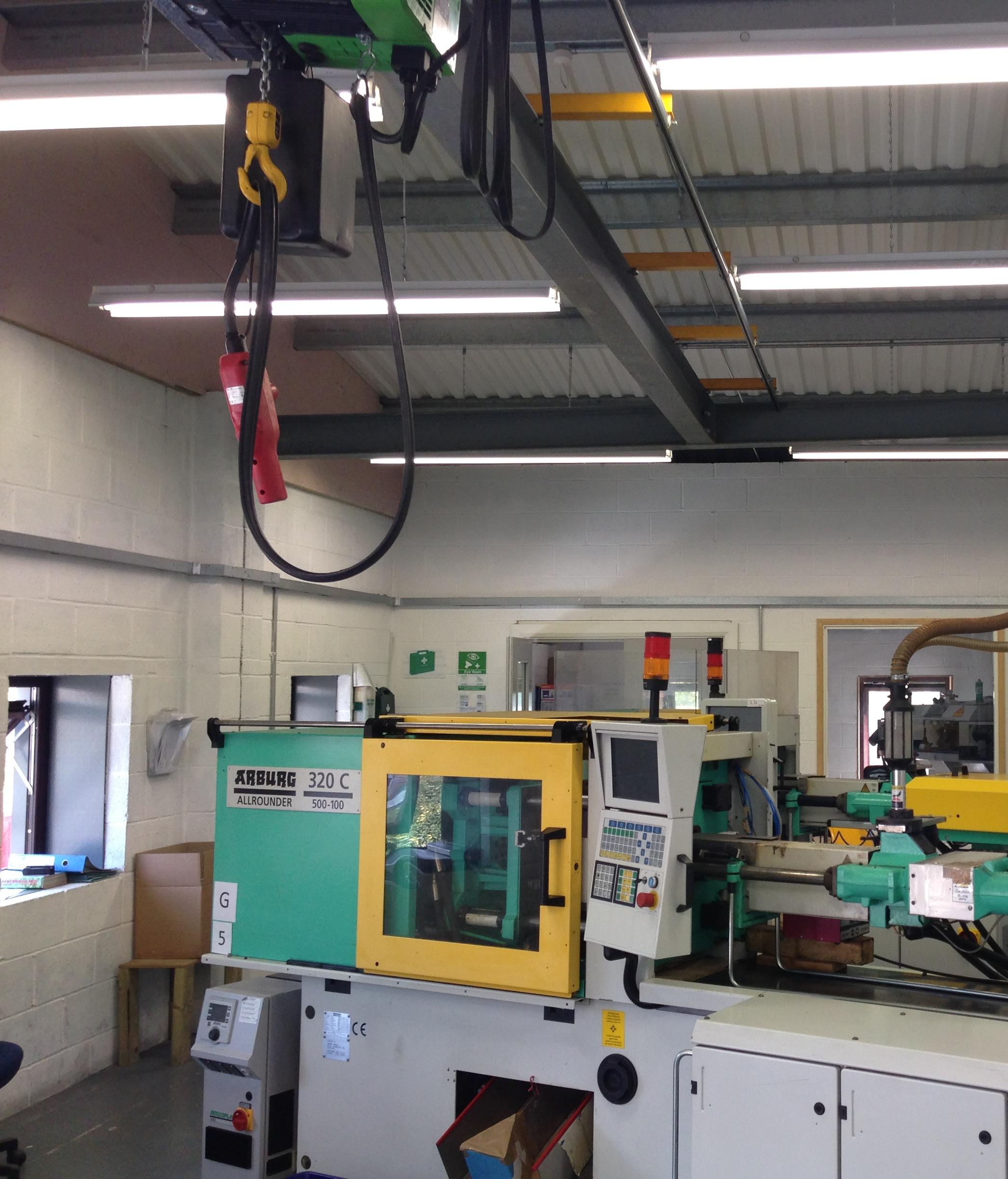

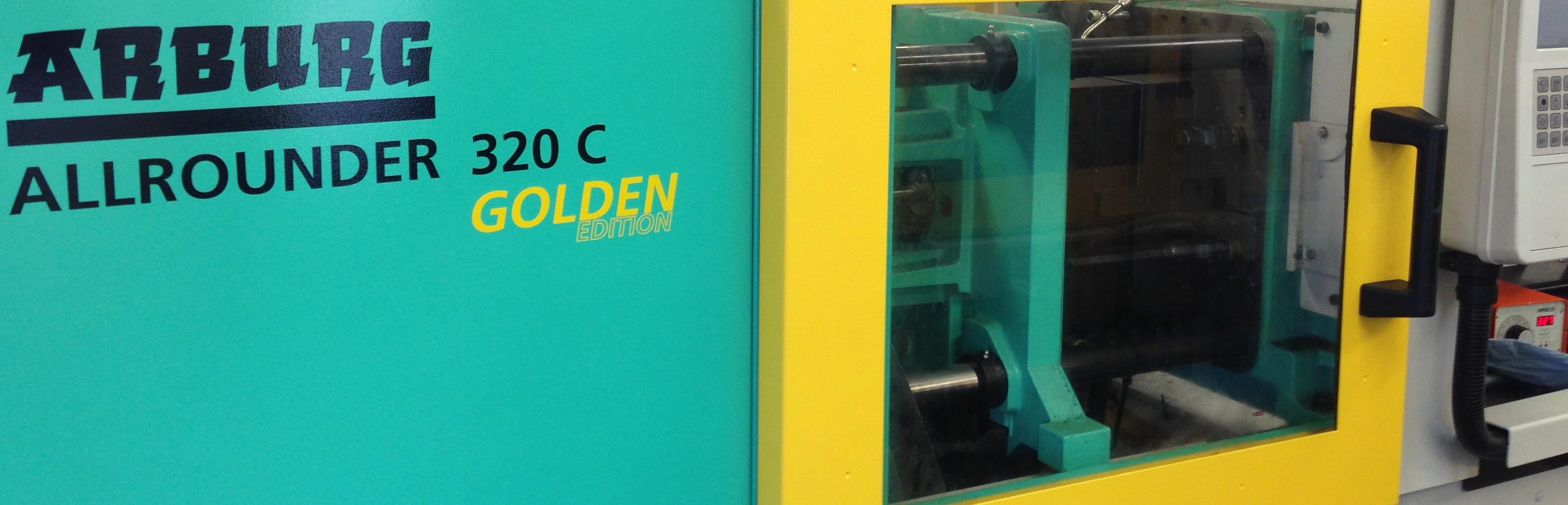

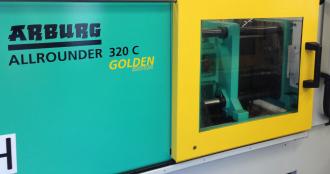

We have 11 off Arburg Machines, with tonnage variablity of 50 to 100 tonnes. We have full capability to tool trial any Mould we have produced to verify design before full production can begin. From there we can offer production work as well as inspection and full tool and Part reports. For all Two Shot Moulding, Euromould has a sister company, called 2SM (2 Shot Moulding).This site is based around 1/4 mile from Euromoulds. On site there we have facility to Trial and Produce all 2 shot mould components. EUROMOULD -MOULD PRESSES • ARBURG 320C ALLROUNDER 500-250 - 1 OFF • ARBURG 320C ALLROUNDER 500-100 -1 OFF • ARBURG 420C GOLDEN EDITION ALLROUNDER -8 OFF • ARBURG 320C ALLROUNDER 500-250 GOLDEN EDITION -1 OFF • ARBURG 320C 600 -100 -2 OFF MOULD PRESS EQUIPMENT • ARBURG THERMOLIFT HOPPER LOADER AND DRIER- 7 OFF • PL MACHINERY MATERIAL REGRINDER - 1 OFF • REGLOPLAS 300S OIL HEATER- 13 OFF • CON AIR TC 200 OIL HEATER- 1 OFF • ICS CHILLING UNIT FOR PRESS COIL COOLING- 1 OFF • MAIN TECH HOPPER LOADER AND DRIER ASM • REGLOPLAS CHILLER UNIT -13 OFF •GRANULATORS 3 OFF TWO SHOT MOULDING - SISTER COMPANY TO EUROMOULD
Inspection And Quality Department

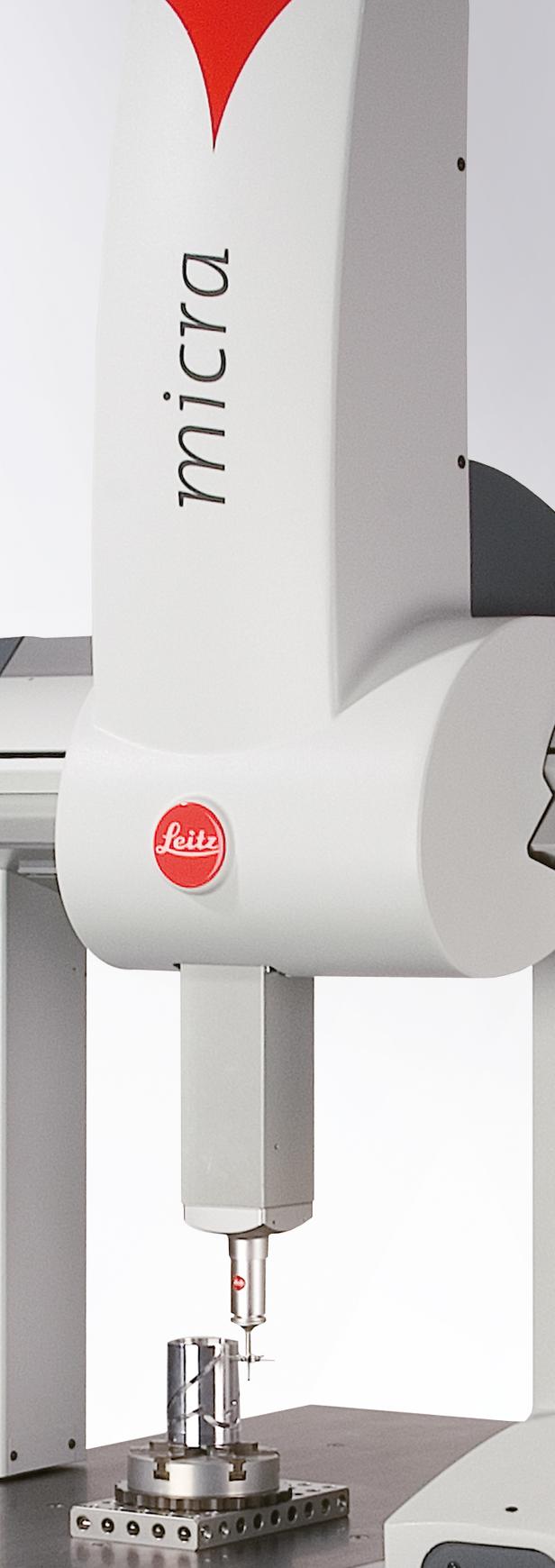

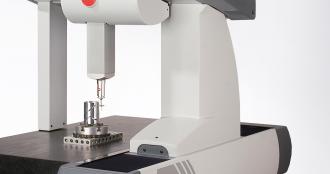

Euromoulds has a highly skilled team to ensure that the end product will meet customer’s satisfaction and production requirements at a consistent level from design to tooling manufacture. In 2011 we purchased our very own LEITZ Micra CMM measuring machine to ensure that each moulding is measured in a precise way and to ensure the part produced is the part the customer requires. It is our commitment to provide a close partnership with any

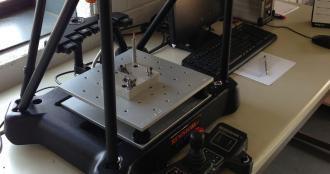

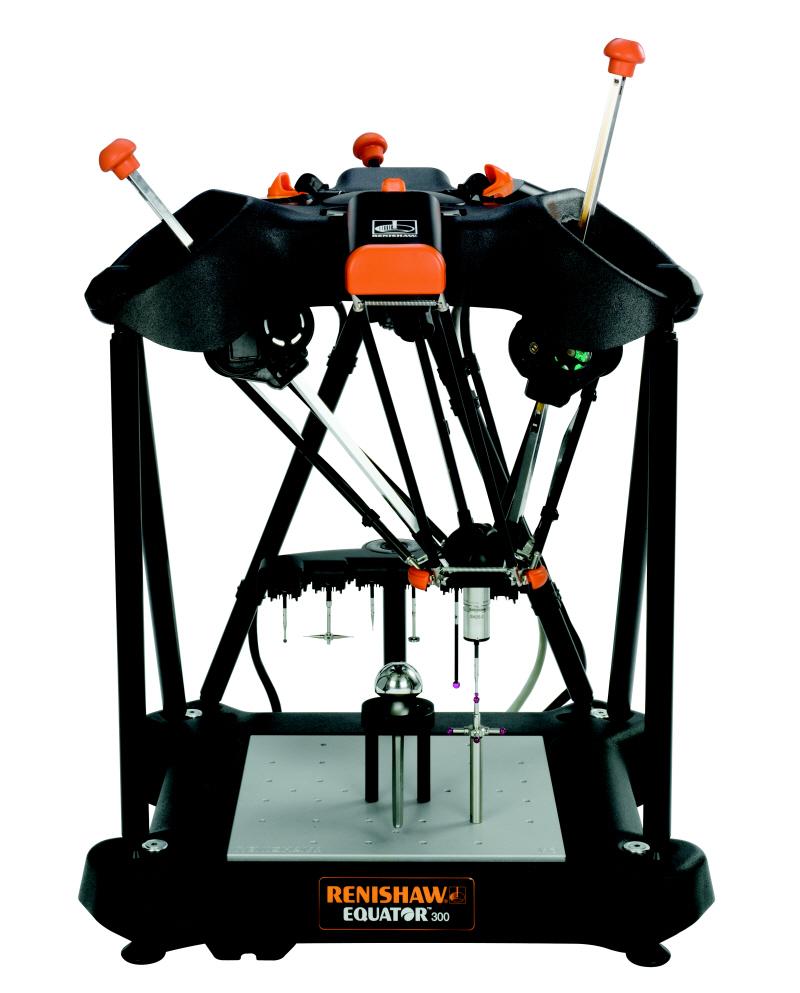

MEASURING EQUIPMENT • LEITZ CMM MICRA • MITUTOYO P5300 SHADOWGRAPH • MITUTOYO TM MICROSCOPE • MITUTOYO VERNIERS/ DIGITAL CALIPERS • MEASURING SLIP SETS • AVERY BERKEL G23C SCALES • ADAM EQUIPTMENT ESJ-205 SCALES • RENISHAW EQUATOR • DEPTH MICROMETERS • VISION ENGINEERING SWIFT - FOR ACCURATE VISION INSPECTION
Laser Welding And Tool Repair

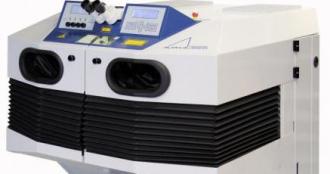

Our Laser Weld facility is aimed specifically for small insert and tooling repairs and modifications.
All work is carried out by skilled toolmakers, and no work is completed without full understanding. |
